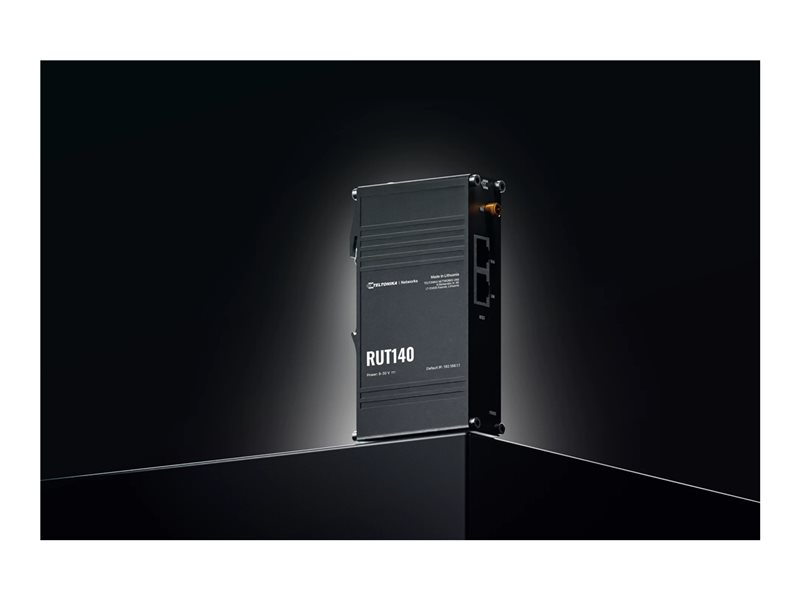

Teltonika - Teltonika RUT140
Wireless router 2.4 GHz - DIN rail mountable
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | Teltonika RUT140 - wireless router - Wi-Fi - DIN rail mountable |
| Device Type | Wireless router |
| Enclosure Type | DIN rail mountable |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz |
| Capacity | Simultaneous connections: up to 50 |
| Network / Transport Protocol | TCP, UDP, IPv4, IPv6, NTP, DNS, FTP, ARP, PPPoE, DHCP, PPTP, L2TP, WireGuard, DDNS |
| Routing Protocol | Static IP routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, policy-based routing (PBR), VRRP |
| Platform | Clouds of Things, Azure IoT Hub, Cumulocity |
| Remote Management Protocol | HTTP, HTTPS, SMTP, SSH, Telnet, SMPP, SNMP 1, SNMP 2, SNMP 3, SSH-2, TR-069, JSON-RPC |
| Features | Access Point operational mode, station operational mode, Auto Cipher modes, client separation, MAC address filtering, auto-uplink (auto MDI/MDI-X), PPP, H.323 Pass-Through, SIP ALG, port forwarding, SQM, WMM support, load balancing, Captive Portal, RADIUS Server, SSHFS support, PSK, DMZ support, IPSec NAT-T, DDoS Protection, port scan prevention, port-based VLAN, tagged VLAN, white list, black list, CLI management, Web Filtering, GRE tunneling, DMVPN, SSTP client instance support, Modbus compatible, MQTT support, DLMS support, Teltonika RMS, SNMP trap, passive PoE supported, aluminum housing, DNP3 outstation |
| Compliant Standards | IEEE 802.11s, IEEE 802.11r, IEEE 802.11v, IEEE 802.11k, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, UPnP, IEEE 802.11e |
| Dimensions (WxDxH) | 4.5 in x 2.7 in x 1 in |
| Weight | 5.02 oz |
| General | |
| Device Type | Wireless router |
| Enclosure Type | DIN rail mountable |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz |
| Capacity | Simultaneous connections: up to 50 |
| Network / Transport Protocol | TCP, UDP, IPv4, IPv6, NTP, DNS, FTP, ARP, PPPoE, DHCP, PPTP, L2TP, WireGuard, DDNS |
| Routing Protocol | Static IP routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, policy-based routing (PBR), VRRP |
| Remote Management Protocol | HTTP, HTTPS, SMTP, SSH, Telnet, SMPP, SNMP 1, SNMP 2, SNMP 3, SSH-2, TR-069, JSON-RPC |
| Encryption Algorithm | WPA2-Enterprise, PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, Opportunistic Wireless Encryption (OWE), AES-CCMP, TKIP, EAP-TLS, PKCS#11, SSL 3.0, TLS, 128-bit AES, 192-bit AES, 256-bit AES, DES, 3DES, IKEv1, IKEv2, AES-GCM |
| Authentication Method | Extended Service Set ID (ESSID), RADIUS, X.509 certificates, TACACS+ |
| Features | Access Point operational mode, station operational mode, Auto Cipher modes, client separation, MAC address filtering, auto-uplink (auto MDI/MDI-X), PPP, H.323 Pass-Through, SIP ALG, port forwarding, SQM, WMM support, load balancing, Captive Portal, RADIUS Server, SSHFS support, PSK, DMZ support, IPSec NAT-T, DDoS Protection, port scan prevention, port-based VLAN, tagged VLAN, white list, black list, CLI management, Web Filtering, GRE tunneling, DMVPN, SSTP client instance support, Modbus compatible, MQTT support, DLMS support, Teltonika RMS, SNMP trap, passive PoE supported, aluminum housing, DNP3 outstation |
| Compliant Standards | IEEE 802.11s, IEEE 802.11r, IEEE 802.11v, IEEE 802.11k, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, UPnP, IEEE 802.11e, IP30, RED, UKCA, CB, RCM, FCC, IC, EAC, UCRF, WEEE |
| Processor | 1 x MediaTek MIPS 24Kec 580 MHz |
| RAM | 128 MB DDR2 SDRAM |
| Flash Memory | 16 MB |
| Status Indicators | WAN, LAN, power |
| Expansion / Connectivity | |
| Interfaces | LAN: 1 x 10Base-T/100Base-TX - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX - RJ-45 ¦ Antenna: 1 x RP-SMA - Wi-Fi |
| Miscellaneous | |
| Included Accessories | 3-pin power terminal block |
| Software / System Requirements | |
| OS Provided | RutOS |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 4.5 in |
| Depth | 2.7 in |
| Height | 1 in |
| Weight | 5.02 oz |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 1 |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Platform | Clouds of Things, Azure IoT Hub, Cumulocity |
