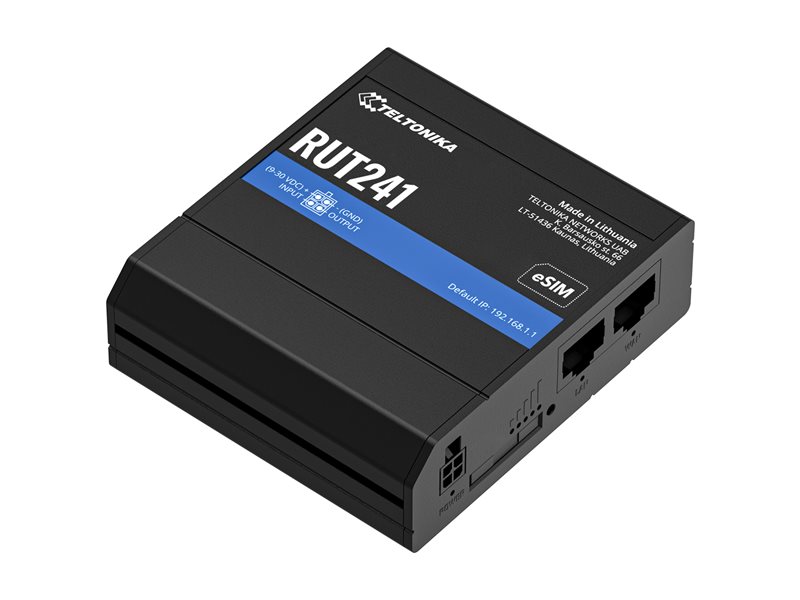

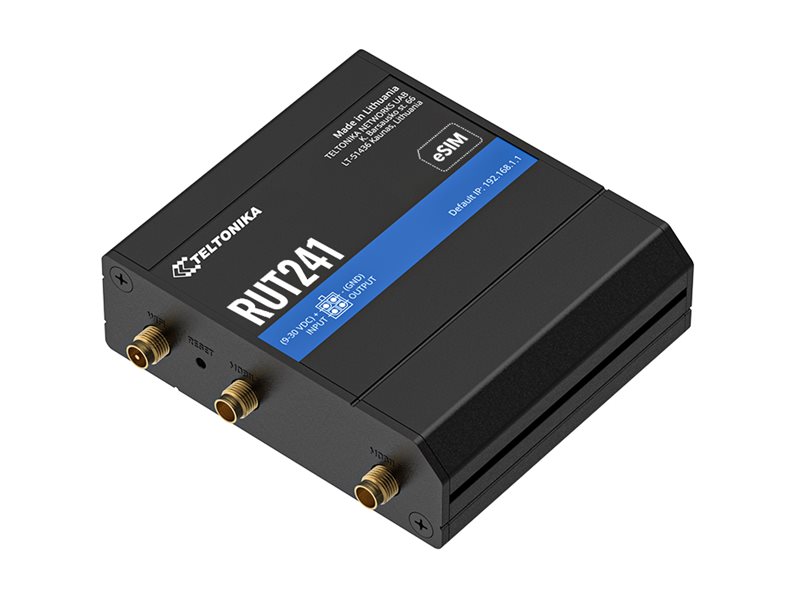

Teltonika - Teltonika RUT241

Wireless router - WWAN 2.4 GHz - 2G, 3G, 4G - DIN rail mountable

Teltonika
RUT241233000
N/A
N/A
N/A
New

Price: $231.00

Total Available: 0

Product Description

Additional Details

  • Special Delivery: None

What's Included

Specifications

Print Specs
Main Specifications
Product Description Teltonika RUT241 - wireless router - WWAN - Wi-Fi - 2G, 3G, 4G - DIN rail mountable
Device Type Wireless router - wireless cellular modem
Enclosure Type DIN rail mountable
Cellular Protocol FDD LTE, TDD LTE
Generation 2G, 3G, 4G
Cellular Band LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B18, LTE B19, LTE B20, LTE B25, LTE B26, LTE B28, LTE B38, LTE B39, LTE B40, LTE B41
WAN Ports Qty 1
Data Link Protocol Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency Band 2.4 GHz
Capacity Simultaneous connections: 50
Network / Transport Protocol TCP/IP, UDP/IP, IPv4, IPv6, NTP, DNS, FTP, ARP, PPPoE, DHCP, Telnet, DDNS, OpenVPN, PPTP, L2TPv3, WireGuard
Routing Protocol Static IP routing, BGP, OSPFv2, RIP-1, RIP-2, NHRP, VRRP
Platform Clouds of Things, ThingWorx, Cumulocity, Azure
Remote Management Protocol ICMP, HTTP, HTTPS, SMTP, SSH, MQTT, Modbus, SNMP 1, SNMP 2, SNMP 3, TR-069
VoIP Protocols SIP, H.323
Features USSD support, white list, black list, multiple PDN, band management, auto APN, bridge mode, Access Point operational mode, Auto Cipher modes, client separation, Stealth Mode, Captive Portal, RADIUS Server, auto-uplink (auto MDI/MDI-X), MQTT support, WOL, VoIP passthrough support, port forwarding, DHCP relay, NAT support, QoS, SQM, WMM support, load balancing, SSHFS support, PSK, IPSec NAT-T, DDos attack prevention, port scan prevention, VLAN support, mobile quota control, Web Filtering, MAC address filtering, GRE tunneling, SNMP trap, DMVPN, SSTP client instance support, FOTA, Teltonika RMS, passive PoE supported, aluminum housing, eSIM support
Compliant Standards IEEE 802.3, IEEE 802.3u, UPnP
Power AC 100-240 V (50/60 Hz)
Dimensions (WxDxH) 3.3 in x 2.9 in x 1 in
Weight 4.41 oz
Localization Global (excluding Belarus, Iran, Russia)
Manufacturer Warranty 2-year warranty
General
Device Type Wireless router
Enclosure Type DIN rail mountable
Connectivity Technology Wired, wireless
Data Link Protocol Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency Band 2.4 GHz
Capacity Simultaneous connections: 50
Network / Transport Protocol TCP/IP, UDP/IP, IPv4, IPv6, NTP, DNS, FTP, ARP, PPPoE, DHCP, Telnet, DDNS, OpenVPN, PPTP, L2TPv3, WireGuard
Routing Protocol Static IP routing, BGP, OSPFv2, RIP-1, RIP-2, NHRP, VRRP
Remote Management Protocol ICMP, HTTP, HTTPS, SMTP, SSH, MQTT, Modbus, SNMP 1, SNMP 2, SNMP 3, TR-069
Encryption Algorithm WPA2-Enterprise, PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK, AES-CCMP, TKIP, SSL 3.0, TLS, DES, RC2, DESX, CAST5, 128-bit AES-CBC, 192-bit AES-CBC, 256-bit AES-CBC, IKEv1, IKEv2
Authentication Method Radio Service Set ID (SSID), X.509 certificates, RADIUS
Features USSD support, white list, black list, multiple PDN, band management, auto APN, bridge mode, Access Point operational mode, Auto Cipher modes, client separation, Stealth Mode, Captive Portal, RADIUS Server, auto-uplink (auto MDI/MDI-X), MQTT support, WOL, VoIP passthrough support, port forwarding, DHCP relay, NAT support, QoS, SQM, WMM support, load balancing, SSHFS support, PSK, IPSec NAT-T, DDos attack prevention, port scan prevention, VLAN support, mobile quota control, Web Filtering, MAC address filtering, GRE tunneling, SNMP trap, DMVPN, SSTP client instance support, FOTA, Teltonika RMS, passive PoE supported, aluminum housing, eSIM support
Compliant Standards IEEE 802.3, IEEE 802.3u, UPnP, IP30, UKCA, ANRT, ICASA, FCC, IC, PTCRB, NOM, RCM, KC, Giteki, IMDA, E Mark, CB, UL, CSA, RoHS, REACH, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 301 489-52 V1.2.0, EN 61000-4-2:2009, IEC 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014, EN IEC 61000-4-11:2020, EN 300 328 V2.2.2, EN 301 511 V12.5.1, EN 301 908-1 V15.2.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.2.1, EN IEC 62368-1:2020+A11:2020, EN IEC 62311:2020, EN 50665:2017, AS/NZS 62368-1:2022, IEC 62368-1:2018, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1-19
Processor 1 x MediaTek MIPS 24KC 580 MHz
RAM 128 MB DDR2 SDRAM
Flash Memory 16 MB
Status Indicators Connection status, signal strength, LAN, power
Expansion / Connectivity
Interfaces LAN: 1 x 10Base-T/100Base-TX - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX - RJ-45 ¦ Antenna: 2 x SMA - LTE ¦ Antenna: 1 x RP-SMA - Wi-Fi ¦ 1 x DI ¦ 1 x DO
Expansion Slots 1 (total) / 1 (free) x Mini-SIM
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Miscellaneous
Included Accessories Power adapter, 2 x LTE antennas, Wi-Fi antenna, SIM card adapter kit
Cables Included 1 x network cable - 5 ft
Localization Global (excluding Belarus, Iran, Russia)
Power
Power Device External power adapter - 9 watt
Voltage Required AC 100-240 V (50/60 Hz)
Software / System Requirements
OS Provided RutOS
Environmental Parameters
Min Operating Temperature -40 °F
Max Operating Temperature 167 °F
Humidity Range Operating 10 - 90% (non-condensing)
Communications
Type Wireless cellular modem
Cellular Protocol FDD LTE, TDD LTE
Generation 2G, 3G, 4G
Cellular Band LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B18, LTE B19, LTE B20, LTE B25, LTE B26, LTE B28, LTE B38, LTE B39, LTE B40, LTE B41
Max Transfer Rate 150 Mbps
Dimensions & Weight
Width 3.3 in
Depth 2.9 in
Height 1 in
Weight 4.41 oz
Antenna
Antenna External detachable
Antenna Qty 3
IP Telephony
VoIP Protocols SIP, H.323
Internet of Things (IoT)
Internet of Things (IoT) Compatible Yes
Platform Clouds of Things, ThingWorx, Cumulocity, Azure
