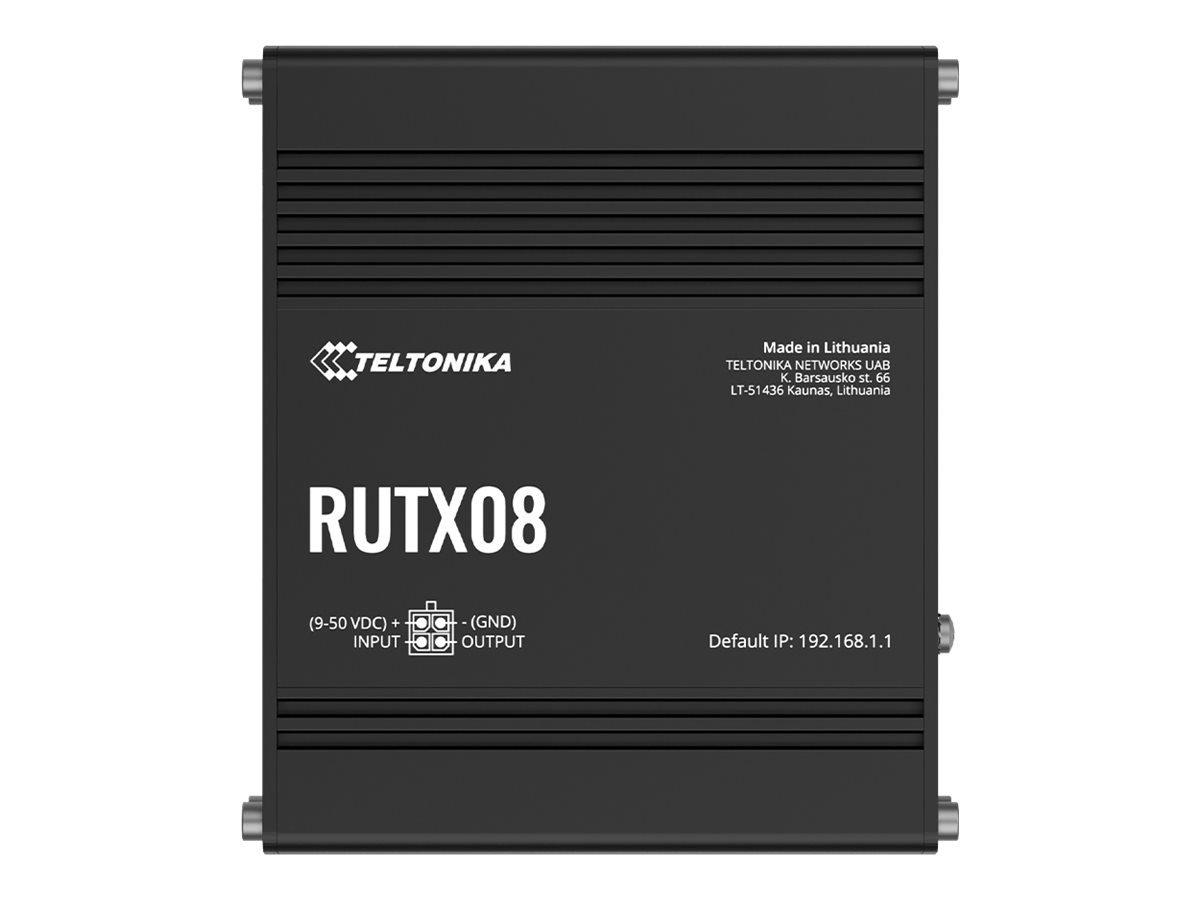

Teltonika - Teltonika RUTX08
Router 3-port switch - 1GbE, PPP - DIN rail mountable, wall-mountable, surface-mountable
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | Teltonika RUTX08 - router - DIN rail mountable, wall-mountable, surface-mountable |
| Device Type | Router - 3-port switch (integrated) |
| Enclosure Type | DIN rail mountable, wall-mountable, surface-mountable |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, PPP |
| Capacity | VLANs supported: 128 |
| Network / Transport Protocol | TCP, UDP, IPv4, IPv6, ICMP/IP, NTP, DNS, HTTP, HTTPs, SFTP, FTP, SMTP, ARP, PPPoE, L2TPv3 |
| Routing Protocol | Static IP routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, policy-based routing (PBR), VRRP, VXLAN |
| Platform | Clouds of Things, Azure IoT Hub, Cumulocity |
| Remote Management Protocol | SSH, DHCP, Telnet, SMPP, MQTT, CLI, SSH-2, SNMP 1, SNMP 2, SNMP 3 |
| VoIP Protocols | H.323, SIP |
| Features | Teltonika RMS, auto-uplink (auto MDI/MDI-X), WOL, ICMP, port forwarding, hotspot captive portal, DHCP relay, DHCP server, RADIUS Server, PPP, VRF, IGMP proxy, 802.1x authentication, NAT support, DDos attack prevention, VLAN support, OpenVPN support, GRE tunneling, IPSec support, WireGuard, Tinc encryption, Tailscale encryption, Modbus compatible, MQTT support, DLMS support, FOTA, reset button, Web Filtering, QoS, passive PoE supported, aluminum housing, DMVPN, DNP3 outstation |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.11e, IEEE 802.1x, UPnP |
| Dimensions (WxDxH) | 4.5 in x 3.7 in x 1.3 in |
| Weight | 12.17 oz |
| General | |
| Device Type | Router - 3-port switch (integrated) |
| Enclosure Type | DIN rail mountable, wall-mountable, surface-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, PPP |
| Capacity | VLANs supported: 128 |
| Network / Transport Protocol | TCP, UDP, IPv4, IPv6, ICMP/IP, NTP, DNS, HTTP, HTTPs, SFTP, FTP, SMTP, ARP, PPPoE, L2TPv3 |
| Routing Protocol | Static IP routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, policy-based routing (PBR), VRRP, VXLAN |
| Remote Management Protocol | SSH, DHCP, Telnet, SMPP, MQTT, CLI, SSH-2, SNMP 1, SNMP 2, SNMP 3 |
| Encryption Algorithm | IKEv1, IKEv2, 3DES, DES, 128-bit AES, 192-bit AES, 256-bit AES, 192-bit AES-GCM, 256-bit AES-GCM, 128-bit AES-GCM, 128-bit AES-CBC, 192-bit AES-CBC, 256-bit AES-CBC, CBC, RC2, CAST5, TLS, SSL |
| Authentication Method | X.509 certificates, RADIUS, TACACS+ |
| Features | Teltonika RMS, auto-uplink (auto MDI/MDI-X), WOL, ICMP, port forwarding, hotspot captive portal, DHCP relay, DHCP server, RADIUS Server, PPP, VRF, IGMP proxy, 802.1x authentication, NAT support, DDos attack prevention, VLAN support, OpenVPN support, GRE tunneling, IPSec support, WireGuard, Tinc encryption, Tailscale encryption, Modbus compatible, MQTT support, DLMS support, FOTA, reset button, Web Filtering, QoS, passive PoE supported, aluminum housing, DMVPN, DNP3 outstation |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.11e, IEEE 802.1x, UPnP, USB / USB 2.0, IP30, UKCA, FCC, EAC, UCRF, CITC, ANRT, NOM, UL, CSA, CB, IC, RCM, EN 55032:2015 + A11:2020 + A1:2020, EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019+A1:2021+A2:2024, EN 61000-3-3:2013 + A1:2019 + A2:2021, FCC 47 CFR Part 15 Subpart B, ICES-003 issue 7, EN 61000-4-2:2009, EN IEC 61000-4-3:2006 + A1:2008 + A2:2010, EN IEC 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-5:2014, EN 61000-4-6:2014, EN 61000-4-11:2004, EN 61000-4-11:2020, EN IEC 62368-1:2020 + A11:2020, IEC 62368-1:2018, AS/NZS 62368.1:2022 |
| Processor | 1 x ARM Cortex-A7 717 MHz |
| RAM | 256 MB DDR3 SDRAM |
| Flash Memory | 256 MB |
| Status Indicators | LAN, power, status |
| Expansion / Connectivity | |
| Interfaces | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x DI ¦ 1 x DO ¦ USB 2.0: 1 x 4 pin USB Type A |
| Miscellaneous | |
| Included Accessories | Power cable with 4-way screw terminal |
| Cables Included | 1 x network cable - 5 ft |
| Power | |
| Power Device | External power adapter - 18 Watt |
| Software / System Requirements | |
| OS Provided | RutOS |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 4.5 in |
| Depth | 3.7 in |
| Height | 1.3 in |
| Weight | 12.17 oz |
| IP Telephony | |
| VoIP Protocols | H.323, SIP |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Platform | Clouds of Things, Azure IoT Hub, Cumulocity |
