Teltonika - Teltonika

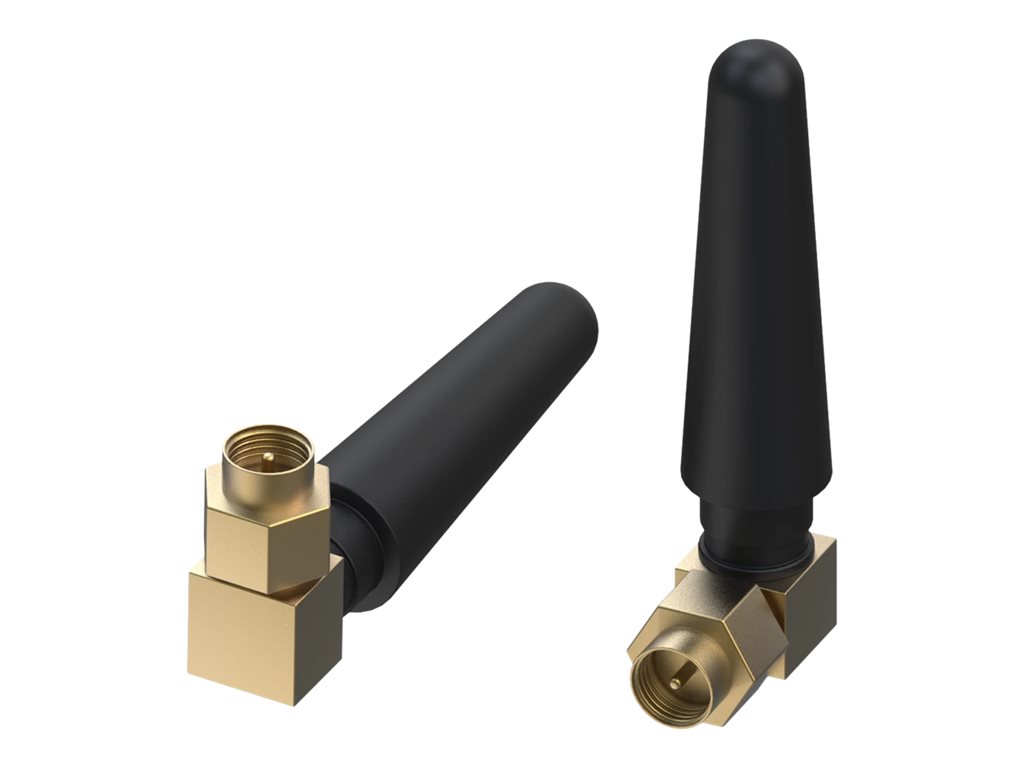

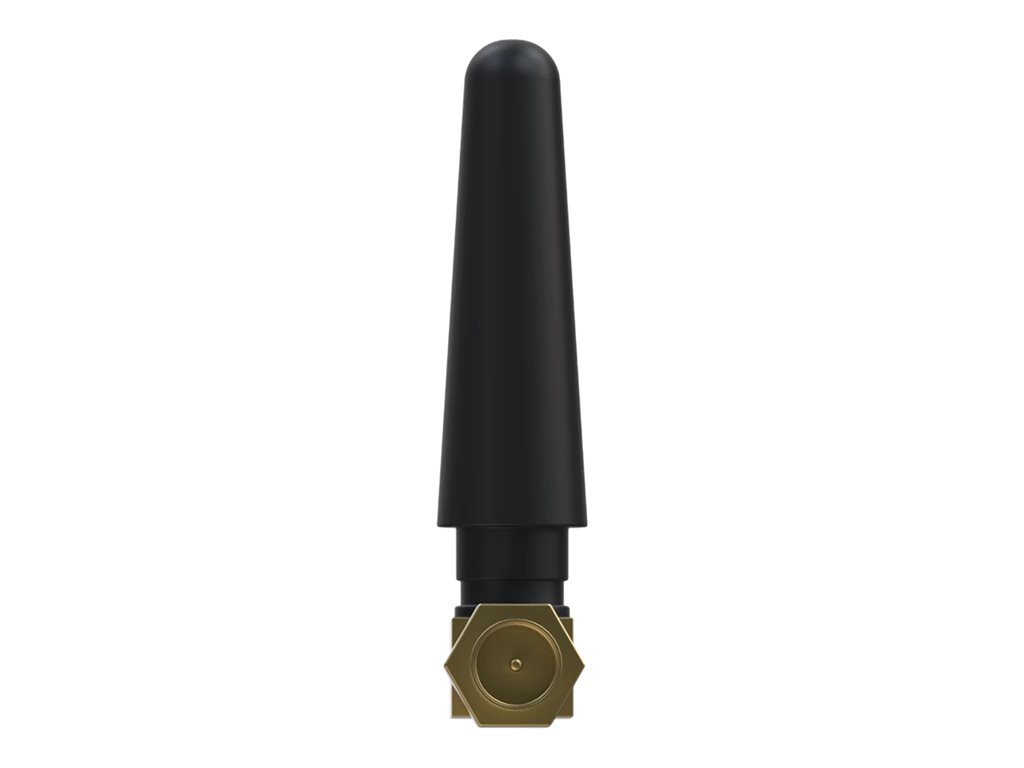

Antenna - stubby - 5 dBi - for Teltonika RUT200, RUT360, RUT951, RUT956, RUTX12, RUTX14, RUTXR1, TRB245, TRB255, TRM250
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | Teltonika - antenna |
| Device Type | Antenna |
| Form Factor | Stubby |
| Dimensions (WxDxH) | 0.4 in x 0.4 in |
| Frequency Range | 700 - 2700 MHz |
| Antenna Length | 2 in |
| Gain | 5 dBi |
| Features | 90° angled connector, linear polarization, VSWR ? 1.8 |
| Designed For | Teltonika RUT200, RUT240, RUT360, RUT950, RUT951, RUT955, RUT956, RUTX09, RUTX11, RUTX12, RUTX14, RUTXR1, TRB140, TRB141, TRB142, TRB145, TRB245, TRB255, TRM240, TRM250 |
| General | |
| Product Type | Antenna |
| Form Factor | Stubby |
| Width | 0.4 in |
| Depth | 0.4 in |
| Length / Max Length | 2 in |
| Antenna | |
| Frequency Range | 700 - 2700 MHz |
| Antenna Length | 2 in |
| Impedance | 50 ohm |
| Gain | 5 dBi |
| Features | 90° angled connector, linear polarization, VSWR ? 1.8 |
| Compatibility Information | |
| Designed For | Teltonika RUT200, RUT240, RUT360, RUT950, RUT951, RUT955, RUT956, RUTX09, RUTX11, RUTX12, RUTX14, RUTXR1, TRB140, TRB141, TRB142, TRB145, TRB245, TRB255, TRM240, TRM250 |
| Connector Provided | |
| Type | 1 x antenna - SMA (male) |
