Teltonika - Teltonika SWM282

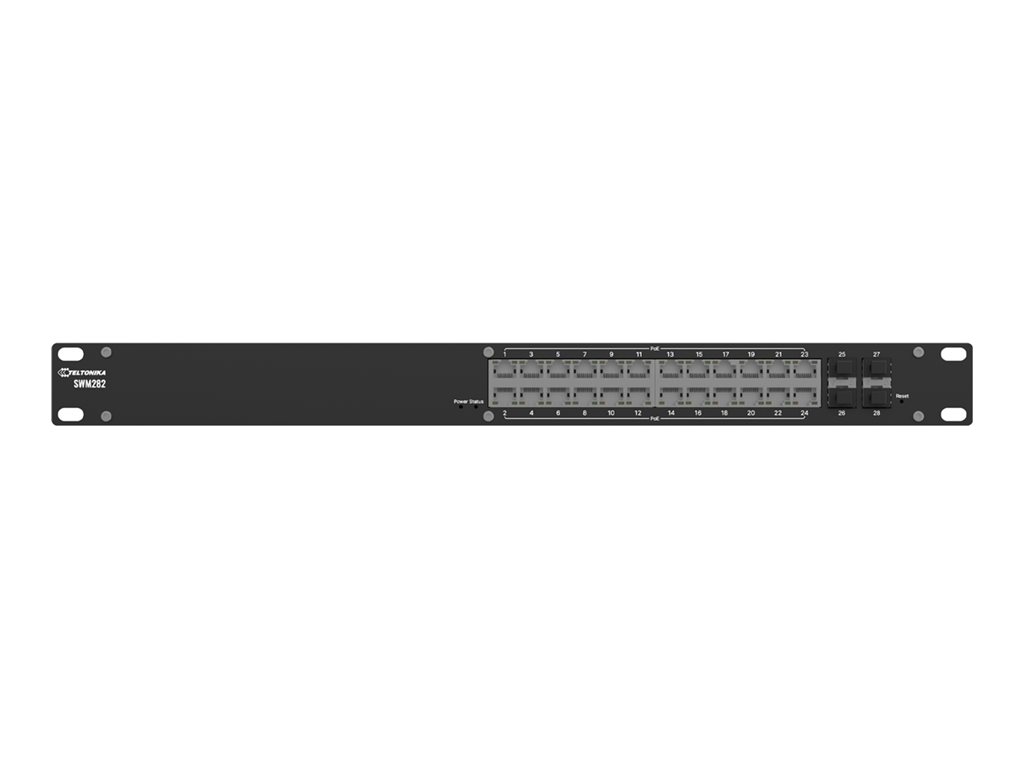

Switch - L2+ - managed - 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - rack-mountable - PoE+ (300 W) - with 2 years of RMS Management
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | Teltonika SWM282 - switch - 24 ports - managed - rack-mountable - with 2 years of RMS Management |
| Device Type | Switch - 24 ports - L2+ - managed - with 2 years of RMS Management |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 300 W |
| Performance | Non-blocking bandwidth: 56 Gbps ¦ Forwarding rate: 83.33 Mpps |
| Capacity | Packet buffer size: 512 KB |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10000 bytes |
| Routing Protocol | BGP, OSPFv2, RIP-1, RIP-2, EIGRP, static IPv4 routing, static IPv6 routing |
| Remote Management Protocol | IPv4, IPv6, SNMP 2, SNMP 3 |
| Features | VLAN segmentation, Teltonika RMS, Auto-MDI/MDIX support, loop protection, VLAN support, RSTP support, STP support, DHCP server, DHCP client, port isolation, PoE management, port mirroring, DHCPv6 client, 802.1x authentication, MAC address filtering, FOTA, reset button, anodized aluminum housing, EtherNet/IP enabled, LLDP Neighbor Discovery, EEE, port priority, DSCP prioritization, ToS, SP, WFQ, WRR, rate limit, Storm Control, traffic shaping, Cable Diagnostics Function, traceroute, dynamic routing, PAM, CoS, MRP, Auto MDIX, SP |
| Compliant Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at, IEEE 802.1p, IEEE 802.1x, IEEE 802.1Q |
| Power | AC 100-240 V (50/60 Hz) - power supply not installed |
| Dimensions (WxDxH) | 19 in x 9.2 in x 1.7 in |
| Weight | 5.05 lbs |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Switch - 24 ports - L2+ - managed - with 2 years of RMS Management |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 300 W |
| Performance | Non-blocking bandwidth: 56 Gbps ¦ Forwarding rate: 83.33 Mpps |
| Capacity | Packet buffer size: 512 KB |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10000 bytes |
| Routing Protocol | BGP, OSPFv2, RIP-1, RIP-2, EIGRP, static IPv4 routing, static IPv6 routing |
| Remote Management Protocol | IPv4, IPv6, SNMP 2, SNMP 3 |
| Authentication Method | RADIUS, TACACS |
| Features | VLAN segmentation, Teltonika RMS, Auto-MDI/MDIX support, loop protection, VLAN support, RSTP support, STP support, DHCP server, DHCP client, port isolation, PoE management, port mirroring, DHCPv6 client, 802.1x authentication, MAC address filtering, FOTA, reset button, anodized aluminum housing, EtherNet/IP enabled, LLDP Neighbor Discovery, EEE, port priority, DSCP prioritization, ToS, SP, WFQ, WRR, rate limit, Storm Control, traffic shaping, Cable Diagnostics Function, traceroute, dynamic routing, PAM, CoS, MRP, Auto MDIX, SP |
| Compliant Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at, IEEE 802.1p, IEEE 802.1x, IEEE 802.1Q |
| Processor | 1 x Realtek Semiconductor MIPS 4Kec: 500 MHz |
| RAM | 128 MB DDR3 SDRAM |
| Flash Memory | 16 MB |
| Status Indicators | Power, SFP, network, status |
| Expansion / Connectivity | |
| Interfaces | 24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W ¦ 4 x 1000Base-X SFP |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Rack Mounting Kit | Optional |
| Compliant Standards | IP30, UKCA, CB, RCM, FCC, IC, RoHS, REACH |
| Power | |
| Power Device | Internal power supply (not installed) |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 9 watt |
| Software / System Requirements | |
| Software Included | SwmOS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 9.2 in |
| Height | 1.7 in |
| Weight | 5.05 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 20.1 in |
| Shipping Depth | 12.5 in |
| Shipping Height | 2.9 in |
