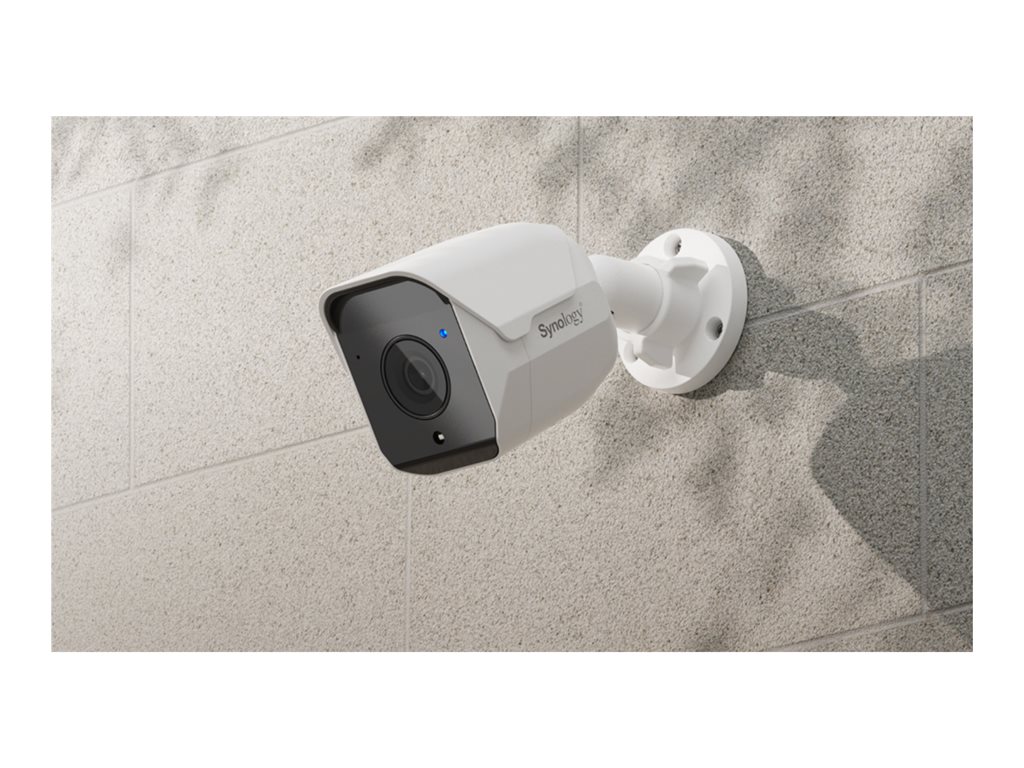

Synology - Synology BC510
Network surveillance camera - bullet - outdoor, indoor - color (Day&Night) - 2880 x 1620 - fixed focal - audio - LAN 10/100 - H.264, H.265 - TAA Compliant
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | Synology BC510 - network surveillance camera - bullet - TAA Compliant |
| Device Type | Network surveillance camera - fixed - bullet - outdoor, indoor |
| Audio | Yes: built-in microphone |
| Dimensions (WxDxH) | 4.3 in x 6.3 in x 4.3 in |
| Weight | 12.45 oz |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 2880 x 1620 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Video Modes | 1620p, 1440p, 1296p, 1080p, 720p |
| Optical Sensor Type | 1/2.7" |
| Focal Length Control | Fixed focal |
| Lens Iris | F/1.8 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | DC 12 V |
| Features | 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), reset button, brightness control, contrast adjustment, sharpness control, saturation control, white balance, exposure control, High Dynamic Range (HDR), mirror, privacy masking (up to 5 areas), people counting, vehicle counting, crowd detection, loitering detection, 850nm illuminator, Audio Detection, Vehicle Detection |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | -22 °F - 122 °F; 5 - 95% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: built-in microphone |
| Audio Formats | G.711 |
| Form Factor | Bullet |
| Connectivity Technology | Wired |
| Width | 4.3 in |
| Depth | 6.3 in |
| Height | 4.3 in |
| Weight | 12.45 oz |
| Expansion / Connectivity | |
| Ports | LAN - RJ-45 |
| Supported Memory Cards | microSD Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Screw pack, RJ-45 cap cover |
| TAA Compliant | Yes |
| Compliant Standards | FCC, CB, IC, UKCA, BSMI, VCCI, RCM, KC, JATE, REACH, WEEE, RoHS, IP66, IP67, NDAA, IEEE 802.3af |
| Power | |
| Power Device | DC 12 V 4.8 watt |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 5 - 95% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor, indoor |
| Digital Video Format | H.264, H.265 |
| Max Digital Video Resolution | 2880 x 1620 |
| Motion Detection | Yes |
| Video Modes | 1620p, 1440p, 1296p, 1080p, 720p |
| Exposure Range | 1/30 sec - 1/16000 sec |
| Infrared LEDs | Yes |
| Infrared Distance | 98 ft |
| Digital Video Capture Resolution | 2880 x 1620, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720 |
| Frame Rate (max) | 30 frames per second |
| Features | 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), reset button, brightness control, contrast adjustment, sharpness control, saturation control, white balance, exposure control, High Dynamic Range (HDR), mirror, privacy masking (up to 5 areas), people counting, vehicle counting, crowd detection, loitering detection, 850nm illuminator, Audio Detection, Vehicle Detection |
| Lens Construction | |
| Type | Fixed focal |
| Lens Iris | F/1.8 |
| Horizontal Field of View (degree) | 110 |
| Vertical Field of View (degree) | 56 |
| Diagonal Field of View (degree) | 132 |
| Image Sensor | |
| Type | 1/2.7" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | HTTP, HTTPS, TLS, TCP/IP, UDP, IPv4, UPnP, RTSP, SRTP, NTP, SSL, DHCP, RTP |
