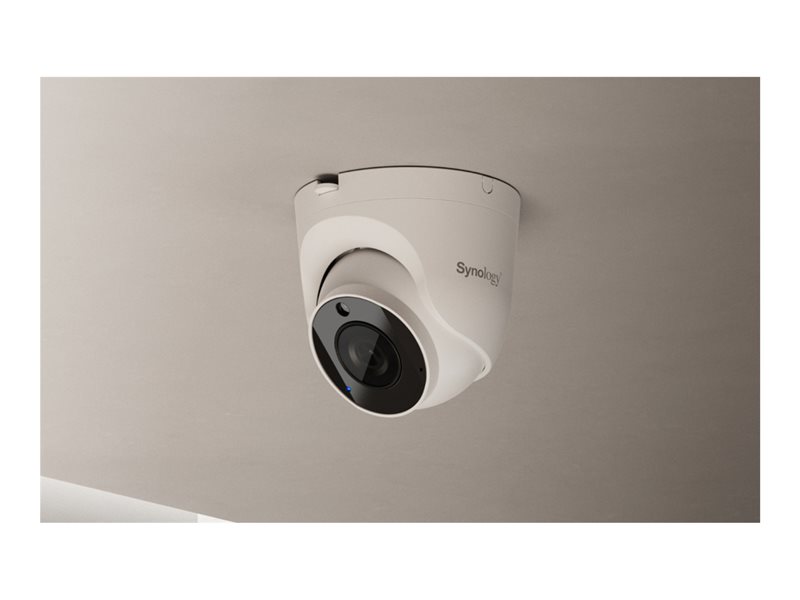

Synology - Synology TC510
Network surveillance camera - pan / tilt - turret - vandal / waterproof - color (Day&Night) - 2880 x 1620 - fixed focal - audio - LAN 10/100 - H.264, H.265 - TAA Compliant
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | Synology TC510 - network surveillance camera - turret - TAA Compliant |
| Device Type | Network surveillance camera - pan / tilt - turret - vandal / waterproof |
| Audio | Yes: built-in microphone |
| Dimensions (WxDxH) | 3.8 in x 3.5 in x 3.8 in |
| Weight | 13.65 oz |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 2880 x 1620 |
| Frame Rate (max) | 30 frames per second |
| Video Modes | 1080p, 1296p, 1440p, 1620p, 720p |
| Optical Sensor Type | 1/2.7" |
| Focal Length Control | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/1.8 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | DC 12 V |
| Features | 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), reset button, brightness control, contrast adjustment, sharpness control, saturation control, white balance, exposure control, High Dynamic Range (HDR), mirror, privacy masking (up to 5 areas), people counting, vehicle counting, crowd detection, loitering detection, 850nm illuminator |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | -22 °F - 122 °F; 5 - 95% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: built-in microphone |
| Audio Formats | G.711 |
| Form Factor | Turret |
| Connectivity Technology | Wired |
| Width | 3.8 in |
| Depth | 3.5 in |
| Height | 3.8 in |
| Weight | 13.65 oz |
| Expansion / Connectivity | |
| Ports | LAN - RJ-45 |
| Supported Memory Cards | microSD Card |
| Encryption Algorithm | TLS 1.2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | RJ-45 cap cover, screw pack |
| TAA Compliant | Yes |
| Compliant Standards | IP66, IP67, IK10, REACH, WEEE, RoHS, FCC, CB, IC, UKCA, BSMI, VCCI, RCM, KC, JATE, NDAA, IEEE 802.3af |
| Power | |
| Power Device | DC 12 V 4.8 watt |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 5 - 95% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - pan / tilt - vandal / waterproof |
| Digital Video Format | H.264, H.265 |
| Max Digital Video Resolution | 2880 x 1620 |
| Video Modes | 1080p, 1296p, 1440p, 1620p, 720p |
| Exposure Range | 1/30 sec - 1/16000 sec |
| Infrared LEDs | Yes |
| Infrared Distance | 98 ft |
| Digital Video Capture Resolution | 2880 x 1620, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720 |
| Frame Rate (max) | 30 frames per second |
| Features | 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), reset button, brightness control, contrast adjustment, sharpness control, saturation control, white balance, exposure control, High Dynamic Range (HDR), mirror, privacy masking (up to 5 areas), people counting, vehicle counting, crowd detection, loitering detection, 850nm illuminator |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/1.8 |
| Horizontal Field of View (degree) | 110 |
| Vertical Field of View (degree) | 56 |
| Diagonal Field of View (degree) | 132 |
| Image Sensor | |
| Type | 1/2.7" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | HTTP, HTTPS, TLS, TCP/IP, UDP, IPv4, UPnP, RTSP, NTP, DHCP, SSL, RTP, SRTP |
